Man-up Turret Truck Double-deep Racking MCC12 1.2ton

01 - Product Description:

Model No.: MCC12
Load capacity: 1200kgs
Main Lift Height: 4500-12500mm
Additional lift height: 1780mm
Fork type: Double Deep Reach Retractable Fork
Fork function: Left and right side shift + 180° rotation

02 - Applications:

The MiMA MCC12 Double Deep Reach VNA Forklift redefines efficiency with its advanced design. Its integrated double deep reach forks enable precise stacking in very narrow aisles (VNA), maximizing storage density and turnover. This layout increases shelf depth, allowing forklifts to access goods on both sides, optimizing space and reducing expansion costs.

Downloads

Operation Videos

Spotlight on Double-deep Racking Turret Truck: What You Need to Know

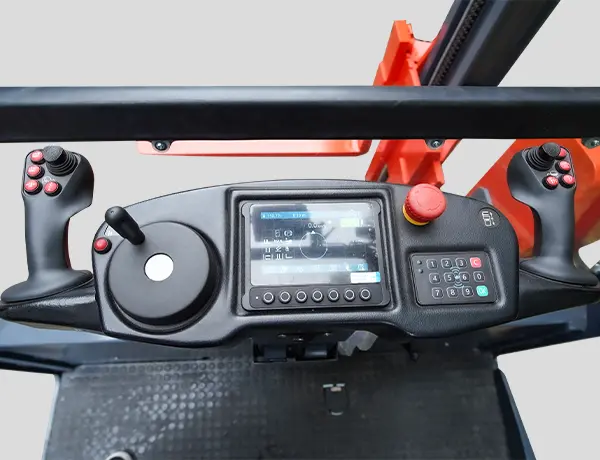

Integrated control panel with tactile buttons prevents misoperation and reduces fatigue.

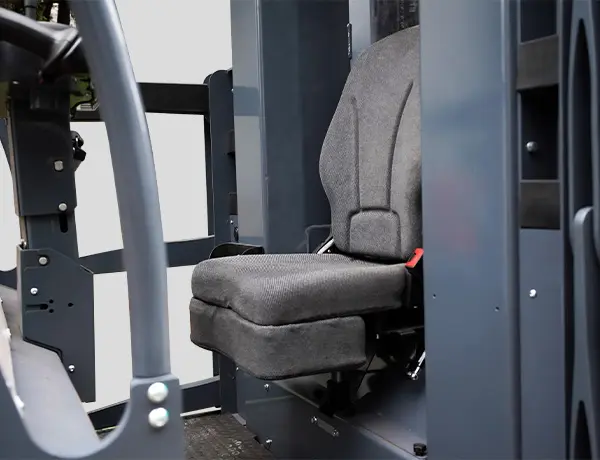

Foldable seat quickly switches between standing and sitting for versatile picking tasks.

Multi-function display shows fork height and battery level for safer high-level operations.

Technical Data

Brand		MIMA	MIMA
Model		MCC12	MCC12
Vehicle Code		MCC12	MCC12SQ(triplex full free mast)
Drive type		Battery	Battery
Operation type		Stand-on/Seated (Man-up)	Stand-on/Seated (Man-up)
Load capacity	Q(kg)	1200	1200
Load cneter distance	C(mm)	600	600
Wheelbase	y(mm)	1815	1815
Tyre type,front/rear		Polyurethane	Polyurethane
Tyre size, front	mm	φ343×150	φ343×150
Tyre size, rear	mm	φ343×140	φ343×140
Wheels, number front/rear (X=driven)		2 / 1X	2 / 1X
Front overhang	b10(mm)	1350	1350
Overhead guard height	h6(mm)	2550	2550
Platform height	h7(mm)	445	445
Additional lift height	h9(mm)	1780[1]	1780[1]
Platform height, raised	h12(mm)	h3+h7	h3+h7
Overall length	l1(mm)	3630	3630
Overall width	b1/ b2(mm)	1220/1500	1220/1500
Fork dimensions	l/e/s(mm)	1200/122/40	1200/122/40
Installation level(ISO2328)		Type II B	Type II B
Fork carriage width	b3(mm)	850	850
Fork outside distance	b5(mm)	350～805	350～805
Width over guide rollers	b6(mm)	1575	1575
Side shift distance	b7(mm)	1300	1300
Ground clearance below mast, laden	m1(mm)	50	50
Ground clearance, center of wheelbase, laden	m2(mm)	80	80
Right angle stacking aisle width (1200×1200)	Ast(mm)	1650[2]	1650[2]
Turning radius	Wa(mm)	2070	2070
Distance from the fork rotation axis	l8(mm)	1140	1140
Main aisle width	mm	≥(3950+400)[3]	≥(3950+400)[3]
Travelling speed, laden/unladen	km/h	8/8[4]	8/8[4]
Lift speed, laden/unladen	mm/s	380/440	380/440
Lowering speed, laden/unladen	mm/s	450/450	450/450
Gradeability, laden/unladen	%(tanθ )	5/8	5/8
Service brake		Electromagnetic brake/Regenerative brake	Electromagnetic brake/Regenerative brake
Parking brake		Electromagnetic brake	Electromagnetic brake
Drive motor, rating S2=60	kw	8 AC	8 AC
Lift motor, rating S3=15%	kw	14 AC	14 AC
Battery voltage/nominal capacity K5	（V）/（Ah）	80/420[5]	80/420[5]
Battery weight	kg	1160	1160
Battery replacement method		Side pull	Side pull
Steering system		Electrical steering	Electrical steering

Characteristcs

Double-deep racking

Rated load capacity of 1200kg, with a customazible max. lifting height of 17000m. It can lift 12m without losing load capacity and supports a rated load of 600kg when the forks are fully extended.

Telescopic forks for double-deep racking, increasing storage capacity

Added Safety

Full-wheel electromagnetic braking ensures shorter braking distances, faster response times, and improved braking effectiveness, enhancing operational safety.

Three emergency escape methods for safe evacuation in case of abnormal stop at height.

End-of-aisle speed reduction to prevent high-speed collisions with pedestrians, walls, or other vehicles

Main and Secondary Mast

Featuring a special H-shaped mast channel steel, central guide rail, and frame design, it improves visibility and enhances stability for high-level operations.

Front-mounted secondary mast and control panel for larger picking space and better visibility

High-level double-deep dense storage

High Configuration

Integrated control panel for easy operation

Standard weighing system for enhanced precision

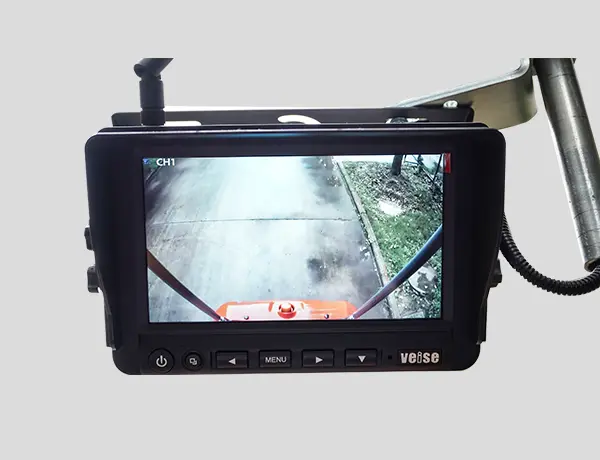

HD rear-view camera for clear visibility of the rear and both sides of the vehicle
