The drive motor uses an advanced transverse parallel layout, placing the battery at the vehicle’s bottom for a lower center of gravity, enhancing stability, smooth turning, and comfortable driving control.

Features like upper limit positioning, automatic descent speed sensing, and descent cushioning function effectively reduce fork sway at higher positions.

Utilizes a new imported CURTIS controller for advanced reliability.

International advanced MOSFET AC control system enables computer-programmed control for forklift movements like travel, steering, lifting, and tilting.

(1) Rated load capacity of 2 tons, maximum lifting height up to 12.5 meters.

(2) Superior Power, Ultra-Low Energy Consumption, Extended Durability: Two high-power drive motors, 18.5KW and 16.3KW, ensure stable and ample power output. A 15KW lifting A/C motor provides sufficient hydraulic power for smooth fork movements. Higher voltage, lower current, and optimized vehicle energy consumption ensure long-lasting endurance.

(3) Features like ascent limit, automatic sensing descent speed control, and descent buffering functions effectively ensure operational safety while protecting goods and pallets from ground impact.

(4) Hydraulic system includes side shifting and fork positioner for enhanced convenience and efficiency.

(1) Indoor Handling and Stacking Made Simple：Articulated forklift can efficiently transports goods from outdoor to indoor rack positions, enabling precise stacking and significant time savings.

(2) Equipped with large-diameter rubber tires, operators can easily perform loading and unloading tasks on semi-rough terrain, ensuring smooth driving regardless of the ground conditions.

(3) Rated load capacity of 2 tons, with a maximum lifting height up to 12.5 meters.

(4) 1.9-meter narrow aisle operation: The articulated forklift’s wide mast swing angle design reduces rack aisle widths to as low as 1.9 meters, allowing for more shelving and significantly increasing warehouse capacity.

(5) 210-degree flexible steering: The vehicle’s mast can rotate 210 degrees, offering an ultra-small turning radius for flexible and comfortable operation, while maintaining the efficiency of traditional counterbalance forklifts

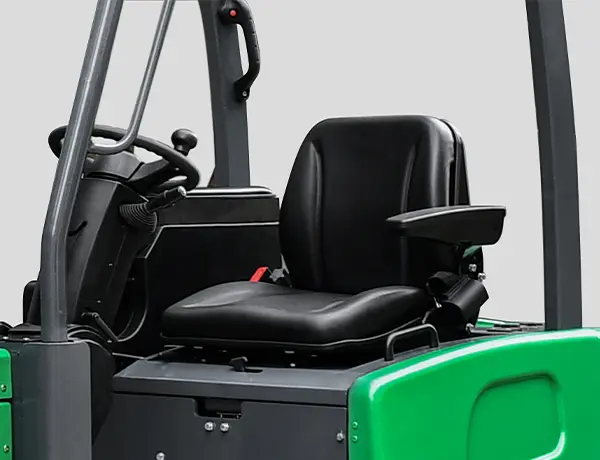

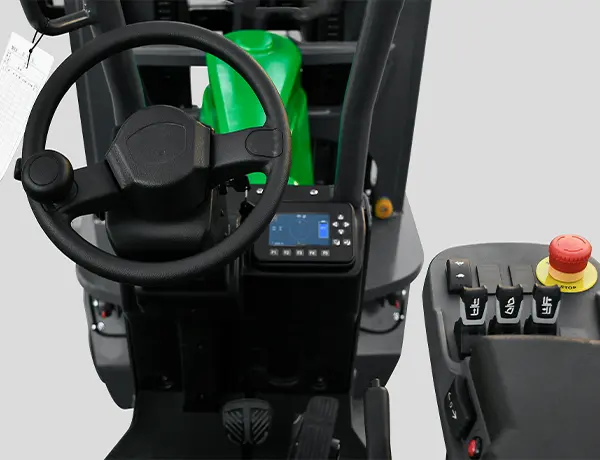

(1) Adjustable steering wheel tilt and seat provide operators with a comfortable driving position.

(2) Large LED dashboard screen features battery level display, timer, and diagnostic functions, ensuring comprehensive functionality and clear readings.

(3) Ergonomically designed control levers, dashboard, and switches, enhance comfort and flexibility during operation.

• Open cabin
• Electric steering
• Wide-view mast
• Ultra-low overhead guard
• LED headlight, turning light and warning light are energy-efficient
• Operator Presence Sensing (OPS) system

(1) Maintenance-free AC motor, high efficiency with complete protection features. It includes speed and temperature sensors, ensuring high reliability and long lifespan. No maintenance costs for replacing carbon brushes.

(2)  Wide-opening engine hood and detachable rear door panel facilitate easy battery replacement and maintenance.
