Electric Articulated Forklift MJ Series 3.0ton
01 - Product Description:
- Model: MJ30
- Load Capacity: 3000kg
- Lift Height: 8000mm
- Max. swing angle: 210 degrees
- Drive Type: Front-driven
02 - Applications:
MJ20/30 are primarily designed for efficient operations in narrow aisles, with more options in load capacity including 2-ton and 3-ton, and lift heights up to 12.5 meters. MJ30 offers a higher rated load and is ideal for medium-heavy work environments. They’re both cost-effective choices for stacking and transport, improving performance and cutting down on costs.
Operation Videos
Spotlight on Electric Articualted Forklift: What You Need to Know
Technical Data
| Characteristics | 1.1 | Brand | MIMA | |
| 1.2 | Model | MJ30 | ||
| Model Code | MJ30BSQCH(Triplex full free mast Wide Body) | |||
| 1.3 | Power type | Battery | ||

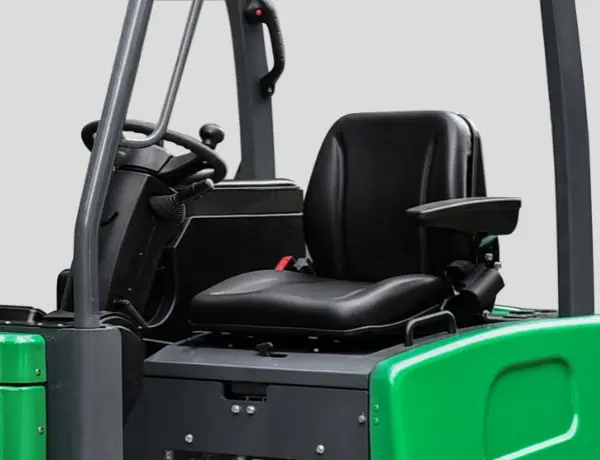

| 1.4 | Operation | Seated | ||
| 1.5 | Load capacity | Q(kg) | 3000 | |
| 1.6 | Load center distance | C(mm) | 600 | |
| 1.8 | Front overhang | x(mm) | 285 | |
| 1.9 | Wheelbase | y(mm) | 1720 | |
| Weight | 2.1 | Service Weight(incl. battery) | kg | 8280 |
| 2.2 | Axle loading, laden, front/rear | kg | 6830/4450 | |
| 2.3 | Axle loading, unladen, front/rear | kg | 2430/5850 | |
| Wheel | 3.1 | Tyre type | Solid Tyre | |
| 3.2 | Tyre size, front | mm | 2×Φ413×178 | |
| 3.3 | Tyre size, rear | mm | 2×Φ457×229 | |
| 3.5 | Wheels number, front/rear (X=driven) | 2X/2 | ||
| 3.6 | Track width, front | b10(mm) | 800 | |
| 3.7 | Track width, rear | b11(mm) | 1370 | |
| Dimension | 4.1 | Mast tilt angle, forward/backward | α/β(°) | 1/3 |
| Mast rotation angle | (°) | 210 | ||
| 4.2 | Mast retracted height | h1(mm) | Refer to the mast specification | |
| 4.3 | Free Lift height | h2(mm) | Refer to the mast specification | |
| Rated Lift height | mm | 1700 | ||
| 4.4 | Lift height | h3(mm) | 4600～8000 | |
| 4.5 | Mast extended height | h4(mm) | Refer to the mast specification | |

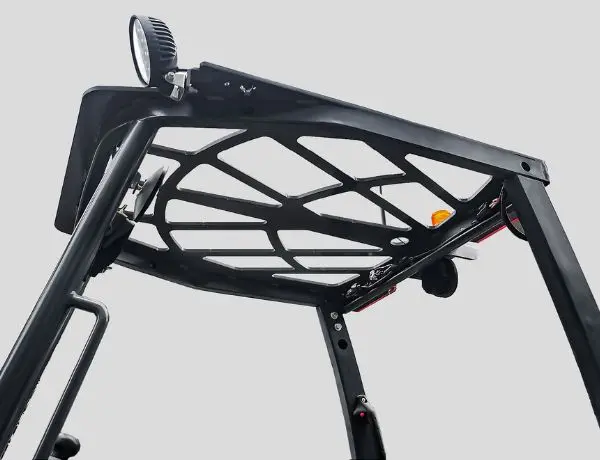

| 4.7 | Overhead guard height | h6(mm) | 2250 | |
| 4.8 | Seat SIP point ground clearance | h7(mm) | 1230 | |
| 4.19 | Overall length | L1(mm) | 3830 | |
| 4.2 | Body to fork surface length | L2(mm) | 2730 | |
| 4.21 | Overall width | b1/b2(mm) | 980/1600 | |
| 4.22 | Fork dimensions | s/e/l(mm) | 45/125/1100 | |
| Installation level | Ⅲ | |||
| 4.24 | Fork carriage width | b3(mm) | 990 | |
| 4.25 | Fork outside spread | b5(mm) | 380～890 | |
| 4.29 | Side shift distance | mm | ±100 | |
| 4.31 | Ground clearance (laden, center of mast) | m1(mm) | 50 | |
| 4.32 | Ground clearance (laden, center of wheelbase) | m2(mm) | 100 | |
| 4.34.2 | Aisle Width (800×1200 Pallet) | mm | 2300 | |
| Efficiency aisle Pallet to pallet distance≥ | mm | 2500 | ||
| Pallet to pallet distance≥ | mm | 2700 | ||
| Other stacking aisle width | mm | Refer to the mast specification | ||
| Min. main aisle width (800×1200 Pallet) | mm | 2750 | ||
| 4.35 | Turning radius | Wa(mm) | 2200 | |
| Performance | 5.1 | Travel Speed, laden/unladen | km/h | 12/13 |
| 5.2 | Lifting Speed, laden/unladen | mm/s | 300/400 | |
| 5.3 | Lowering Speed, laden/unladen | mm/s | 350/350 | |
| 5.8 | Max gradeability, laden/unladen | %(tanθ) | 12/8 | |
| 5.10.1 | Service brake | Hydraulic | ||
| Drive | 6.1 | Drive motor, rating S2=60 | kw | AC16.3 |
| 6.2 | Lift motor, rating S3=15% | kw | AC21 | |
| 6.4 | Battery voltage/nominal capacity K5 | (V)/(Ah) | 80/500 | |
| 6.5 | Battery weight | kg | 1380 | |
| Steering system | Hydraulic | |||
| Others | Lithium battery voltage/ nominal capacity (standard) | (V)/(Ah) | 80/460 | |
|
