High-level Electric Order Picker MH Series 1.2 tons Closed Cab

01 - Product Description:

The MH12 series is a high-level order picker with 1.2-ton rated capacity, main lift height of 3.0-10.5m, and 0.73m auxiliary lift. Features elevating operator platform for efficient high-level picking and inventory operations with semi-enclosed cab design providing excellent visibility and functional versatility.

02 - Applications:

• Mid to high-level racking and narrow aisle warehouse picking and inventory

• Particularly suited for large-size and heavy goods selection

Operation Videos

Spotlight on Electric Order Picker: What You Need to Know

Characteristcs

Full-Color LCD Display
Multi-function full-color LCD with comprehensive information display including drive wheel angle, fork height, battery level, and travel speed for enhanced operational control.

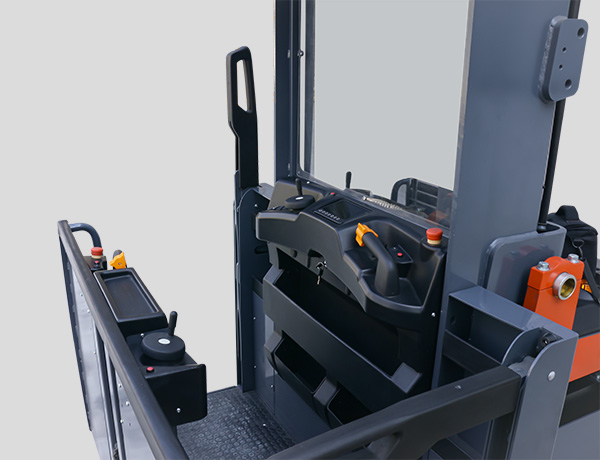

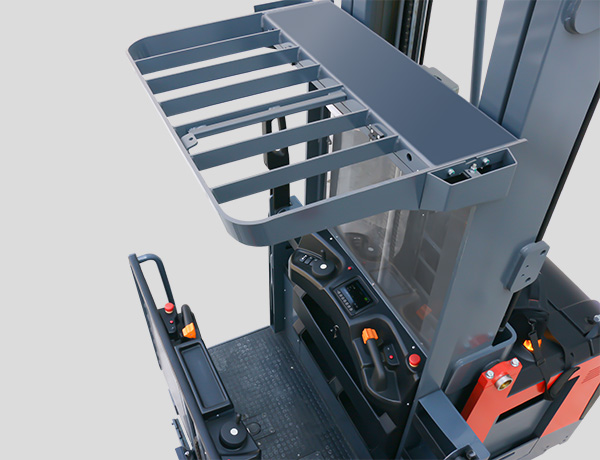

Operator Cab
Operator rises with the cab for picking and inventory operations. Upright cab design provides broader visibility, boosting confidence and efficiency during high-level operations.
Enhanced Safety

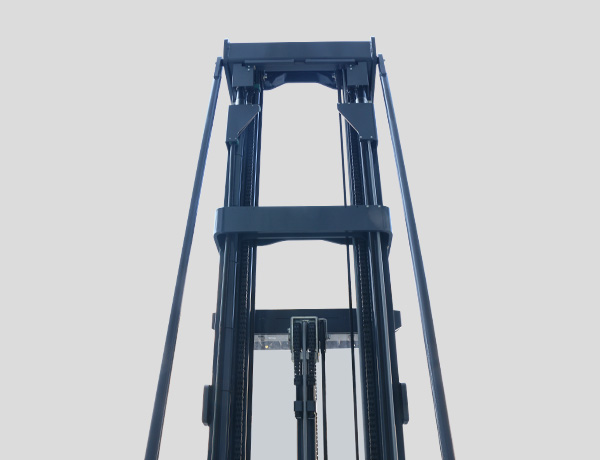

Robust Mast Construction: Large C-channel and H-beam combination with reinforced cross-beams delivers excellent high-level load capacity and reduced mast oscillation for safer high-level picking.

Electronic Safety Arms: Left and right cab safety switches require lowered position before operation, enhancing safety protocols.

Advanced Lighting: Front blue spotlights and warning lights improve operational visibility and safety.

Chain Slack Protection: Prevents chain loosening and potential cab drop hazards during abnormal conditions.

Triple Emergency Escape: Three emergency escape methods available when vehicle stops unexpectedly at height.

High Efficiency & Stability

Advanced Import Controller: Stable, reliable performance with higher efficiency.

Premium Hydraulic Components: Import-brand core components deliver superior precision and stability.

High-Performance Drive: Import gear pump and high-power motor provide faster speeds, higher efficiency, and reduced noise.

48V AC Maintenance-Free System: Rapid, precise response with low current consumption and energy efficiency. Meets demanding operational requirements with reduced maintenance costs.

Comfort & Convenience

Ergonomic Design: Optimized human-machine interface for superior driving experience and complete picking operation requirements.

Easy Battery Access: Convenient battery top cover and side panels for effortless maintenance.

Standard Features: Semi-enclosed cab and auxiliary lift function for safer picking and enhanced comfort.

Extensive Options

Modular Design: Adaptable to various pallet sizes and aisle widths.

Navigation Options: Mechanical rail guidance, aisle mode function, electromagnetic navigation, and permanent magnet navigation available.

Control Configurations: Standard front-mounted control panel (mast side), optional rear-mounted (fork side) or dual control panels.

Aisle Safety Features: Optional end-aisle deceleration and stop function prevents high-speed collisions with pedestrians, walls, or vehicles.

Zone Controls: Optional zone-specific height/speed limiting.

AI Safety Systems: Optional AI collision avoidance and laser obstacle detection safety features.

Order Picker Product Details and Specification

Brand



MIMA

MIMA

MIMA

MIMA

Model



MH

MH

MH

MH

Vehicle Model Code



MH12ML

MH12MV

MH12MT

MH12MH

Power type



Battery

Battery

Battery

Battery

Operation



Picking

Picking

Picking

Picking

Load capacity

Q(kg)

1200

1200

1200

1200

Load center distance

C(mm)

600

600

600

600

Front overhang

x(mm)

322

322

322

322

Wheelbase

y(mm)

1550

1670

1550

1670

Service Weight(incl. battery)

kg

/

/

/

/

Axle loading, laden, front/rear

kg

/

/

/

/

Axle loading, unladen, front/rear

kg

/

/

/

/

Tyre type, front/rear



Polyurethane Tyre

Polyurethane Tyre

Polyurethane Tyre

Polyurethane Tyre

Tyre size, front

mm

φ343×120

φ343×120

φ343×120

φ343×120

Tyre size, rear

mm

φ152×105

φ152×105

φ152×105

φ152×105

Wheels number, front/rear (X=driven)



4 / 1X

4 / 1X

4 / 1X

4 / 1X

Track width, front

b10(mm)

1068

1068

1068

1368

Mast retracted height

h1(mm)

4523

4523

3251

4084

Free Lift height (standard)

h2(mm)

/

/

931

1764

Lift height

h3(mm)

7000

7000

7000

9500

Mast extended height

h4(mm)

9250

9250

9250

11750

Max. picking height

h12+1600(mm)

8760

8760

8760

11260

Overhead guard height

h6(mm)

2310

2310

2310

2310

Platform height

h7(mm)

225

225

225

225

Platform height, raised

h12(mm)

7160

7160

7160

9660

Ground clearance, min fork surface

h13(mm)

65

65

65

65

Overall length

l1(mm)

3318

3438

3318

3438

Overall width

b1/ b2(mm)

1070/1220

1070/1220

1070/1220

1070/1520

Fork dimensions

l/e/s(mm)

1200/100/40

1200/100/40

1200/100/40

1200/100/40

Fork outside spread

b5(mm)

340-700

340-700

340-700

340-700

Width over guide rollers

b6(mm)

1325

1325

1325

1625

Ground clearance below mast, laden

m1(mm)

98

98

98

98

Ground clearance, center of wheelbase, laden

m2(mm)

50

50

50

50

Right angle stacking aisle width (1200×1000)

Ast(mm)

1420

1420

1420

1770

Turning radius

Wa(mm)

1820

1940

1820

1940

Main aisle width

(mm)

≥(3420+200)[3]

≥(3540+200)[3]

≥(3420+200)[3]

≥(3540+200)[3]

Travel Speed, laden/unladen

km/h

8/8

10/10

8/8

10/10

Lifting Speed, laden/unladen

mm/s

320/350

380/450

320/350

380/450

Lowering Speed, laden/unladen

mm/s

320/320

380/380

320/320

380/380

Max straight gradeability, laden/unladen

%(tanθ )

5/8[4]

5/8[4]

5/8[4]

5/8[4]

Service brake



Electromagnetic brake/Regenerative brake

Electromagnetic brake/Regenerative brake

Electromagnetic brake/Regenerative brake

Electromagnetic brake/Regenerative brake

Parking brake



Electromagnetic brake

Electromagnetic brake

Electromagnetic brake

Electromagnetic brake

Drive motor, rating S2=60

kw

5.8 AC

5.8 AC

5.8 AC

5.8 AC

Lift motor, rating S3=15%

kw

14 AC

14 AC

14 AC

14 AC

Battery voltage/nominal capacity K5

(V)/(Ah)

48/400[5]

48/400[6]

48/400[5]

48/400[6]

Battery replacement method



Side pull

Side pull

Side pull

Side pull

Steering system



Electrical steering

Electrical steering

Electrical steering

Electrical steering
