Man-up Turret Truck 1.4ton MCC Series Coldstore
01 - Product Description:
- Brand : MiMA
- Load capacity: 1400kgs
- Standard lifting height: 4.5-12.5m
- Type: Man-up Turret Truck

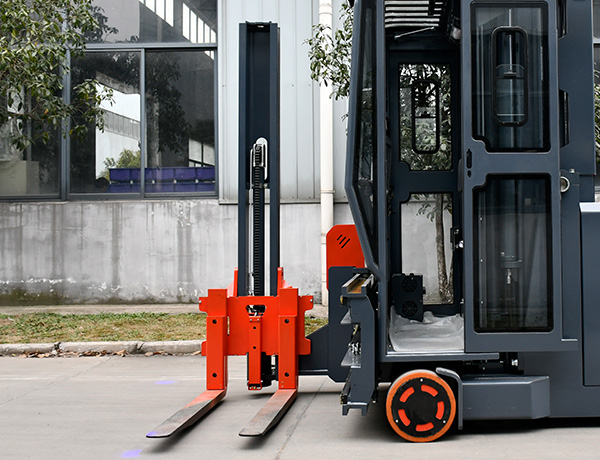

The MCC14 series is a 3-way pallet stacker specifically designed for cold storage. It utilizes a cold storage-specific electrical system, ultra-low temperature power and hydraulic systems, and employs cold storage-specific anti-corrosion technology. It features a closed cab. With a rated load of 1.4 tons, a main lifting height of 4.5-12.5m, and an auxiliary lifting height of 1.7-2.5m, it requires no steering and achieves stacking and unloading of goods on both sides of the aisle through 180° rotation and lateral movement of the forks. The cab is liftable and offers both standing and seated operation modes, providing excellent visibility and functional expandability.
02 - Applications:
• Long-term or short-term operations in cold storage environments ranging from -25℃ to +5℃;
• Stacking and handling of goods in high-bay racking and narrow aisle warehouses;
Operation Videos
Spotlight on Man-up Turret Truck: What You Need to Know

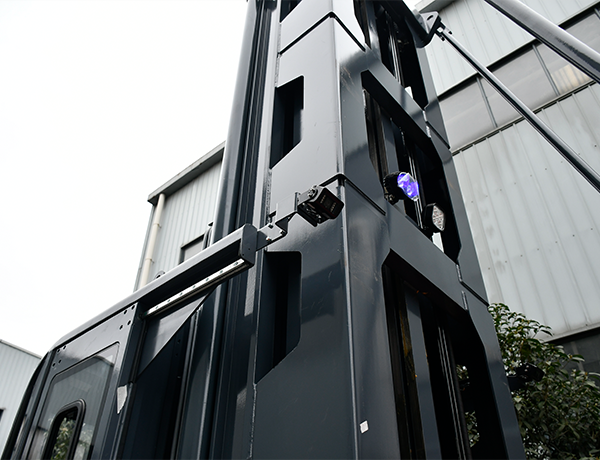

Advanced and robust mast ensures safety and high-efficiency.
Man-up Turret Truck Product Details
| 1.1 | Brand | MIMA | MIMA | MIMA | |
| 1.2 | Product Model | MCC14 | MCC14 | MCC14 | |
| Vehicle Model Code | MCC14F80(Duplex mast) | MCC14SQF80(Triplex full free mast) | MCC14HF80[1] | ||
| 1.3 | Power type | Battery | Battery | Battery | |
| 1.4 | Operation | Stand-on/Seated (Man-up) | Stand-on/Seated (Man-up) | Stand-on/Seated (Man-up) | |
| 1.5 | Load center distance | Q(kg) | 1400 | 1400 | 1400 |
| 1.6 | Front overhang | C(mm) | 600 | 600 | 600 |
| 1.9 | Wheelbase | y(mm) | 2150 | 2250 | 2330 |
| 2.1 | Service Weight (incl. battery) | kg | / | / | / |
| 2.2 | Axle loading, laden, front/rear | kg | / | / | / |
| 2.3 | Axle loading, unladen, front/rear | kg | / | / | / |
| 3.1 | Tyre type, front/rear | Polyurethane | Polyurethane | Polyurethane | |
| 3.2 | Tyre size, front | mm | φ380×192 | φ380×192 | φ380×192 |
| 3.3 | Tyre size, rear | mm | φ400×160 | φ400×160 | φ400×160 |
| 3.5 | Wheels number, front/rear (X=driven) | 2 / 1X | 2 / 1X | 2 / 1X | |
| 3.6 | Track width, front | b10(mm) | 1310 | 1310 | 1310 |
| 4.2 | Mast retracted height | h1(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.3 | Free Lift height (standard) | h2(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.4 | Lift height | h3(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.5 | Mast extended height | h4(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| Overall lift height | h3+h9(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification | |
| 4.7 | Overhead guard height | h6(mm) | 2635 | 2635 | 2635 |
| 4.8 | Platform height | h7(mm) | 445 | 445 | 445 |
| 4.11 | Additional lift height | h9(mm) | 1780[2] | 1780[2] | 1780[2] |
| 4.14 | Platform height, raised | h12(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.19 | Overall length | l1(mm) | 3955 | 4030 | 4110 |
| 4.21 | Overall width | b1/ b2(mm) | 1244/1502 | 1244/1502 | 1244/1502 |
| 4.22 | Fork dimensions | l/e/s(mm) | 1200/125/50 | 1200/125/50 | 1200/125/50 |
| 4.23 | Installation level(ISO2328) | Type II B | Type II B | Type II B | |
| 4.24 | Fork carriage width | b3(mm) | 790 | 790 | 790 |
| 4.25 | Fork outside distance | b5(mm) | 390～750 | 390～750 | 390～750 |
| 4.27 | Width over guide rollers | b6(mm) | 1575 | 1575 | 1575 |
| 4.29 | Side shift distance | b7(mm) | 1300 | 1300 | 1300 |
| 4.31 | Ground clearance below mast, laden | m1(mm) | 45 | 45 | 45 |
| 4.32 | Ground clearance, center of wheelbase, laden | m2(mm) | 80 | 80 | 80 |
| 4.34 | Right angle stacking aisle width (1200×1000) | Ast(mm) | 1650[3] | 1650[3] | 1650[3] |
| 4.35 | Turning radius | Wa(mm) | 2435 | 2535 | 2615 |
| 4.38 | Distance from the fork rotation axis | l8(mm) | 1120 | 1120 | 1120 |
| Main aisle width | mm | ≥(4325+400)[4] | ≥(4400+400)[4] | ≥(4480+400)[4] | |
| 5.1 | Travel Speed, laden/unladen | km/h | 10/10[5] | 10/10[5] | 10/10[5] |
| 5.2 | Lifting Speed, laden/unladen | mm/s | 320/320 | 320/320 | 320/320 |
| 5.3 | Lowering Speed, laden/unladen | mm/s | 400/380 | 400/380 | 400/380 |
| 5.8 | Max straight gradeability, laden/unladen | %(tanθ ) | 5/8 | 5/8 | 5/8 |
| 5.10.1 | Service brake | Electromagnetic brake/Regenerative brake | Electromagnetic brake/Regenerative brake | Electromagnetic brake/Regenerative brake | |
| 5.10.2 | Parking brake | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | |
| 6.1 | Drive motor, rating S2=60 | kw | 9.5 AC | 9.5 AC | 9.5 AC |
| 6.2 | Lift motor, rating S3=15% | kw | AC21 | AC21 | AC12 |
| 6.4 | Battery voltage/nominal capacity K5 | （V）/（Ah） | 80/700 | 80/700 | 80/840 |
| 6.5 | Battery weight | kg | 1840 | 1840 | 2150 |
| Battery replacement method | Side pull | Side pull | Side pull | ||
| Steering system | Electrical steering | Electrical steering | Electrical steering |
